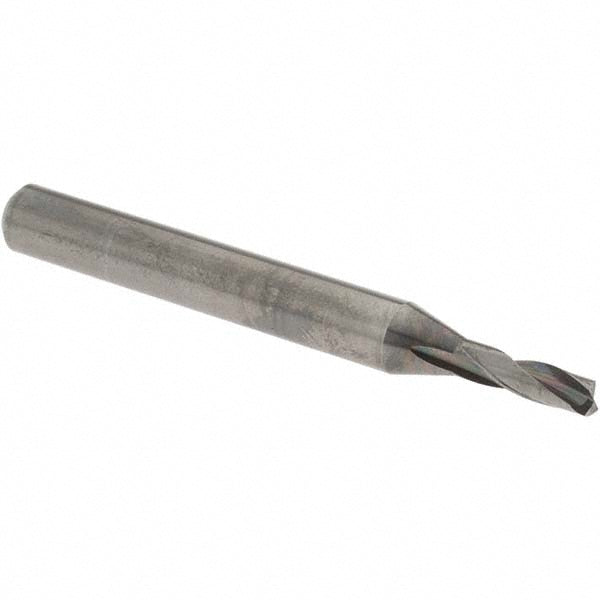

0.1260" Solid Carbide Screw Machine Drill Bit, Coated, 180° point - OSG 3330320

OSG

0.1260" Solid Carbide Screw Machine Drill Bit, Coated, 180° point - OSG 3330320

MFR# 3330320Series 5700

$69.88List $89.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The OSG 3330320 is a 0.1260" Solid Carbide Screw Machine drill bit with a Coated finish, 180° point. Suited for steel, alloy steel, cast iron. Series 5700.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit size0.1260
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle180
Flute by diameter ratio2xD
Flute length (mm)15.00
Flute typeSpiral
Number of flutes2
Overall length (mm)55.00
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
