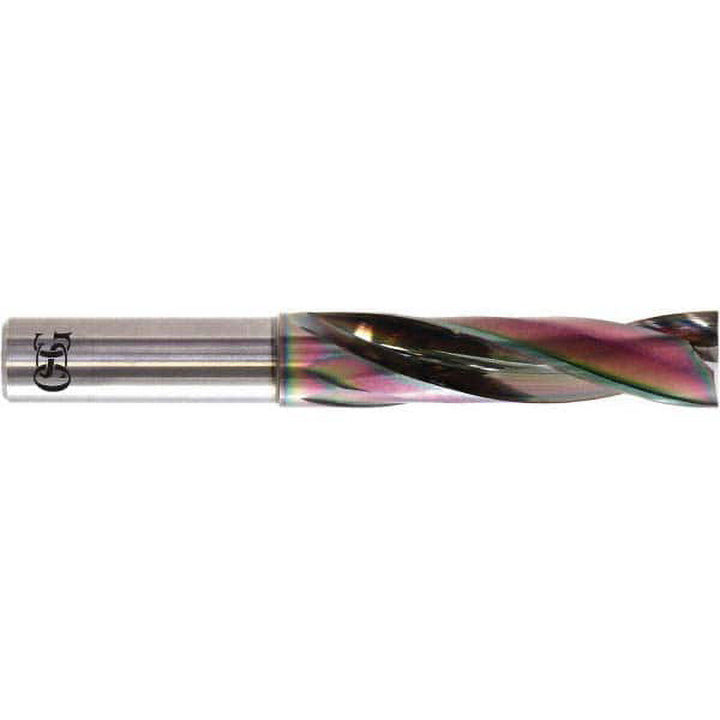

0.2598" Solid Carbide Screw Machine Drill Bit, Coated, 180° point - OSG 3330660

OSG

0.2598" Solid Carbide Screw Machine Drill Bit, Coated, 180° point - OSG 3330660

MFR# 3330660Series 5700

$104.52List $134.06 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The OSG 3330660 is a 0.2598" Solid Carbide Screw Machine drill bit with a Coated finish, 180° point. Suited for steel, alloy steel, cast iron. Series 5700.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit size0.2598
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle180
Flute by diameter ratio2xD
Flute length (mm)30.00
Flute typeSpiral
Number of flutes2
Overall length (mm)70.00
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
