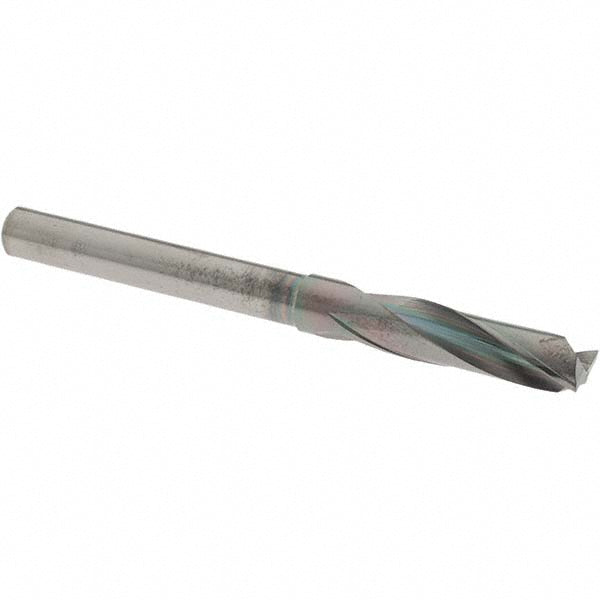

0.2677" Solid Carbide Screw Machine Drill Bit, Multi-layer, 180° point - OSG 3330680

OSG

0.2677" Solid Carbide Screw Machine Drill Bit, Multi-layer, 180° point - OSG 3330680

MFR# 3330680Series 5700

$104.52List $134.06 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingMulti-layer

Description

The OSG 3330680 is a 0.2677" Solid Carbide Screw Machine drill bit with a Multi-layer finish, 180° point. Suited for steel, cast iron, hardened materials. Series 5700.

Specifications

Coating finishMulti-layer
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit size0.2677
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle180
Flute by diameter ratio2xD
Flute length (mm)30.00
Flute typeRegular Spiral
Number of flutes2
Overall length2.7559
Point typeFlat Bottom
Primary workpiece materialSteel; Cast Iron; Hardened Materials
Shank diameter0.2362
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
