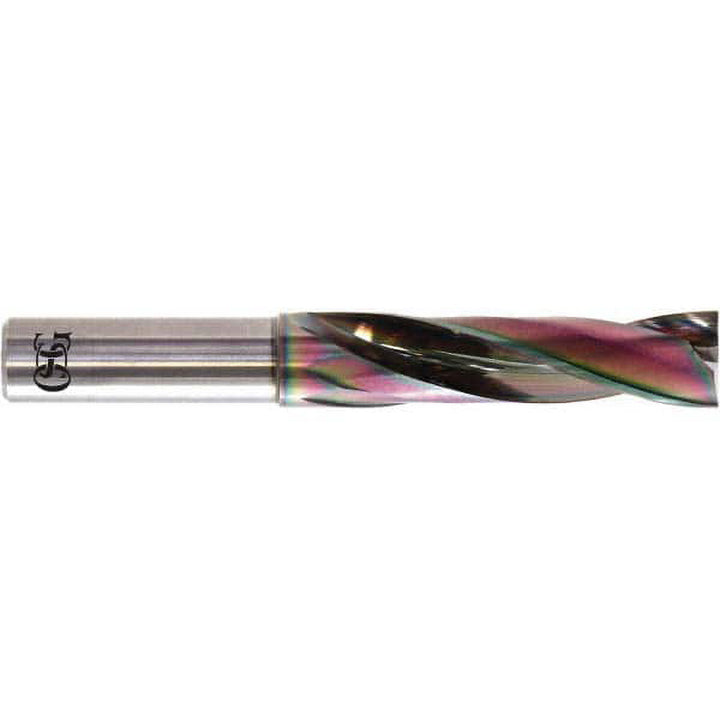

0.2913" Solid Carbide Screw Machine Drill Bit, Coated, 180° point - OSG 3330740

OSG

0.2913" Solid Carbide Screw Machine Drill Bit, Coated, 180° point - OSG 3330740

MFR# 3330740Series 5700

$114.50List $146.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The OSG 3330740 is a 0.2913" Solid Carbide Screw Machine drill bit with a Coated finish, 180° point. Suited for steel, alloy steel, cast iron. Series 5700.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit size0.2913
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle180
Flute by diameter ratio2xD
Flute length (mm)34.00
Flute typeSpiral
Number of flutes2
Overall length2.9528
Point typeWeb-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter0.2362
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
