OSG

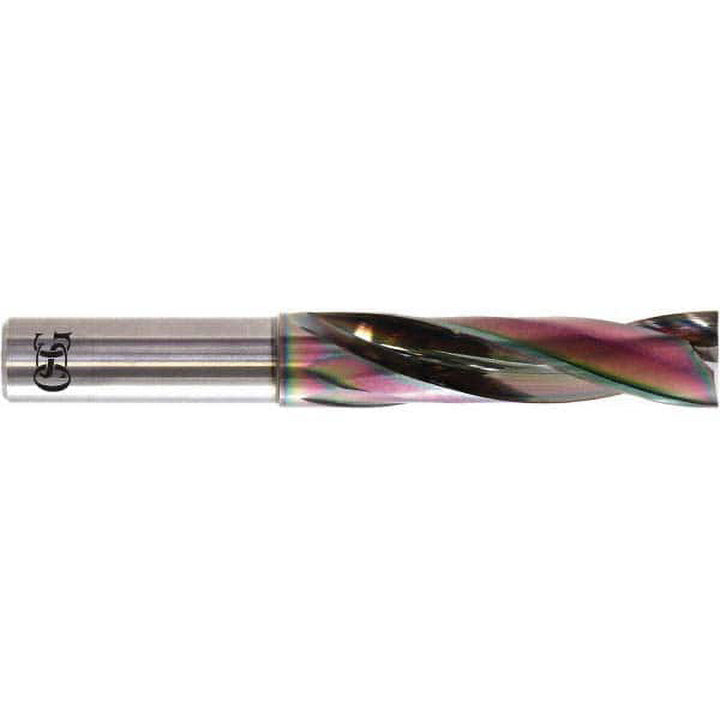

0.2992" Solid Carbide Screw Machine Drill Bit, Multi-layer, 180° point - OSG 3330760
MFR# 3330760Series 5700
$108.58List $136.84
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMulti-layer
Description
The OSG 3330760 is a 0.2992" Solid Carbide Screw Machine drill bit with a Multi-layer finish, 180° point. Suited for steel, cast iron, hardened materials. Series 5700.
Specifications
Coating finishMulti-layer
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit size0.2992
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle180
Flute by diameter ratio2xD
Flute length (mm)34.00
Flute typeRegular Spiral
Number of flutes2
Overall length2.9528
Point typeFlat Bottom
Primary workpiece materialSteel; Cast Iron; Hardened Materials
Shank diameter0.2362
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
