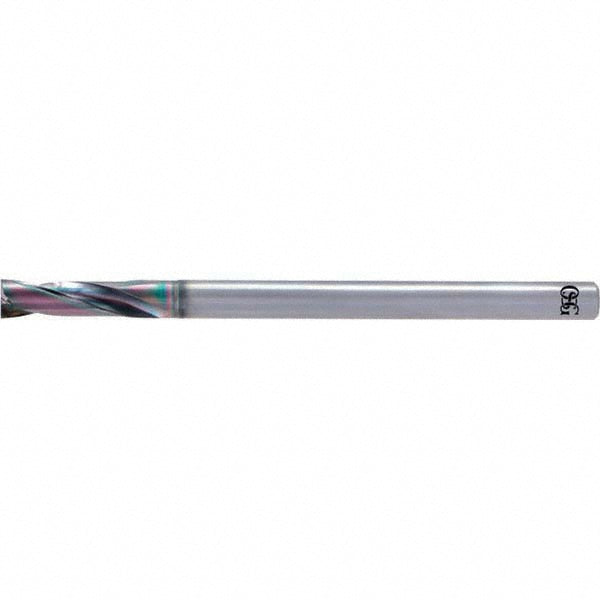

0.2362" Solid Carbide Stub Drill Bit, EgiAs, 0° point - OSG 3334060
MFR# 3334060Series 5705
$134.24List $172.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingEgiAs
Description
The OSG 3334060 is a 0.2362" Solid Carbide Stub drill bit with a EgiAs finish, 0° point. Series 5705.
Specifications
Coating finishEgiAs
Coolant throughNo
Cutting directionRight Hand
Drill bit size0.2362
Drill bit size range0.2000 to 0.2500
Drill length typeStub
Drill point angle0
Drill tip finish coatingEgiAs
Flute by diameter ratio2xD
Flute length (mm)27.00
Flute typeSpiral
Number of flutes2
Overall length (mm)110.00
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
