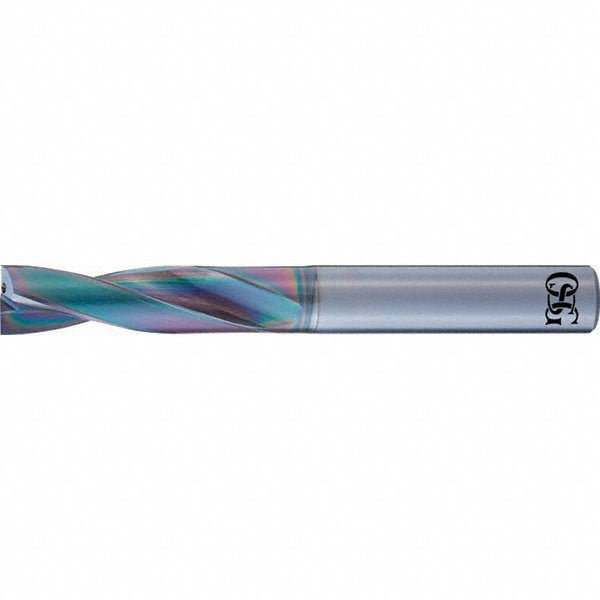

0.1260" Solid Carbide Screw Machine Drill Bit, Multi-layer, 180° point - OSG 3334304

OSG

0.1260" Solid Carbide Screw Machine Drill Bit, Multi-layer, 180° point - OSG 3334304

MFR# 3334304Series 5720

$90.85List $116.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingMulti-layer

Description

The OSG 3334304 is a 0.1260" Solid Carbide Screw Machine drill bit with a Multi-layer finish, 180° point. Suited for steel, cast iron, hardened materials. Series 5720.

Specifications

Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit size0.1260
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle180
Drill tip finish coatingEgiAs
Flute by diameter ratio3xD
Flute length (mm)15.00
Flute typeRegular Spiral
Number of flutes2
Overall length2.1654
Point typeFlat Bottom
Primary workpiece materialSteel; Cast Iron; Hardened Materials
Shank diameter0.1575
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
