OSG

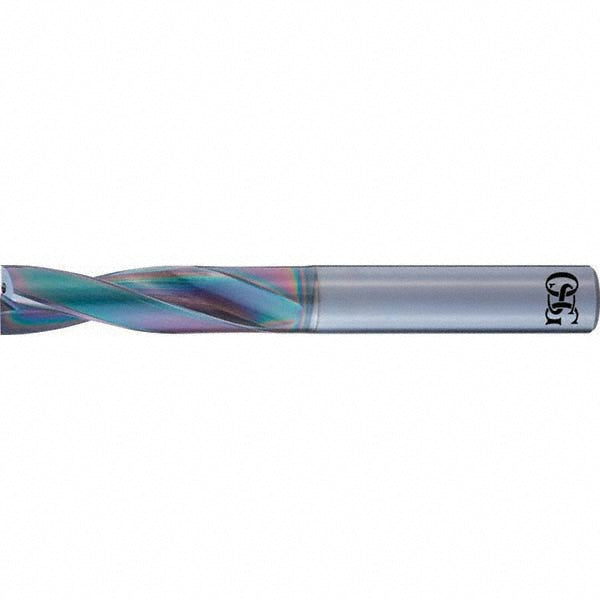

0.2756" Solid Carbide Stub Drill Bit, Multi-layer, 180° point - OSG 3334354
MFR# 3334354Series 5720
$135.88List $174.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMulti-layer
Description
The OSG 3334354 is a 0.2756" Solid Carbide Stub drill bit with a Multi-layer finish, 180° point. Series 5720.
Specifications
Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.2756
Drill bit size range0.2500 to 0.3000
Drill length typeStub
Drill point angle180
Drill tip finish coatingEgiAs
Flute by diameter ratio3xD
Flute length (mm)30.00
Flute typeRegular Spiral
Number of flutes2
Overall length2.7559
Point typeFlat Bottom
Shank diameter0.3150
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
