OSG

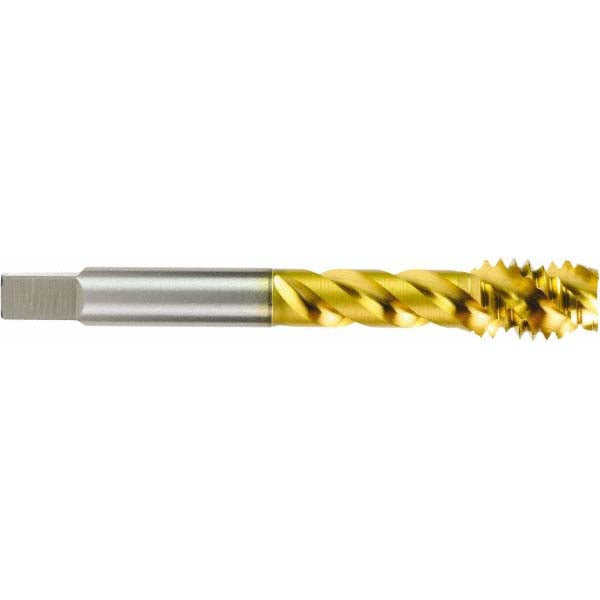

M10x1.5 Metric Powdered Metal Tap, Proprietary - OSG 3360010156
MFR# 3360010156Series 336NI
$115.31List $147.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingProprietary
Description
The OSG 3360010156 is a Metric Powdered Metal tap with a Proprietary finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishProprietary
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle11
Helix angle range15 to 45
MaterialPowdered Metal
Material applicationHardened Steel; Stainless Steel; Titanium
Neck length (mm)39.00
Number of flutes3
Overall length (mm)1.00
OversizeNo
Primary workpiece materialStainless Steel; High-Temp Alloy; Hardened Materials
Shank diameter0.2810
Thread directionRight Hand
Thread length (mm)18.00
Thread limitD6
Thread size (mm)M10x1.5
Thread standardMetric
