7/16" 4-Flute Solid Carbide Square End Mill - OSG 36041311

OSG

7/16" 4-Flute Solid Carbide Square End Mill - OSG 36041311

MFR# 36041311Series 3604

$115.37List $147.97 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/16
Flutes4
MaterialSolid Carbide

Description

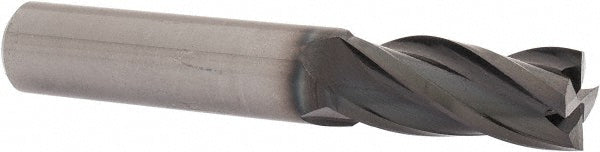

The OSG 36041311 is a 7/16 4-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 2-3/4 overall length. Series 3604.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Material gradeMicrograin
Mill diameter in7/16
Mill diameter tolerance+0.0000/-0.0008 in
Number of flutes4
Overall length in2-3/4
Shank diameter in7/16
Variable helixNo
Variable indexNo
