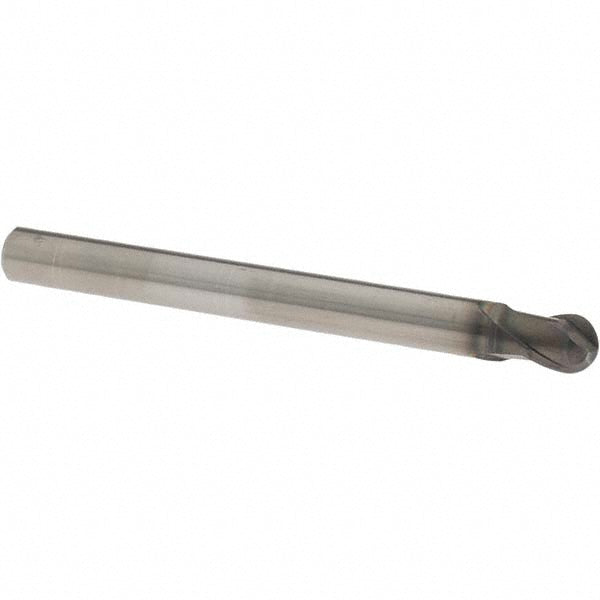

3/8in" 2-Flute Solid Carbide Ball End Mill, WXL - OSG 36100811

OSG

3/8in" 2-Flute Solid Carbide Ball End Mill, WXL - OSG 36100811

MFR# 36100811Series 3610

$127.55List $163.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8in
Flutes2
MaterialSolid Carbide
CoatingWXL

Description

The OSG 36100811 is a 3/8in 2-flute Solid Carbide (Ultra Fine Micrograin) ball end mill with a WXL finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 3/8in length of cut, 4in overall length. Series 3610.

Specifications

Additional informationExocarbWXL End Mills Are The New Industry Standard For Hard Milling. Everything About WXL Is Designed For Rigidity And Performance In Wide Variety Of Materials And A Wide Variety Of Milling Applications. Substrates, Geometry, And Proprietary WXL Coating A
ChipbreakerNo
Coating finishWXL
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in3/8in
Length typeStandard
Manufacturers catalog number36100811
Material gradeUltra Fine Micrograin
Material removal typeRoughing & Finishing
Mill diameter in3/8in
Mill diameter tolerance+0.0004/-0.0004 in
Neck length0.0000
Nose radius0.1875
Number of flutes2
Overall length in4in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Reach length0.3750
Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
Shank diameter in3/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
