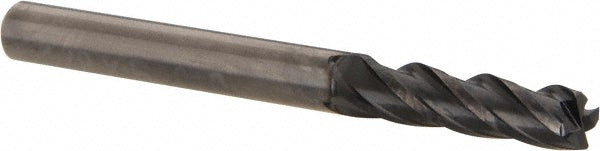

1/8" 4-Flute Solid Carbide Corner Radius End Mill, WXL - OSG 36700511

MFR# 36700511Series 3670

$36.08List $46.27 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes4

MaterialSolid Carbide

CoatingWXL

Description

The OSG 36700511 is a 1/8 4-flute Solid Carbide (Micrograin) corner radius end mill with a WXL finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 1/2 length of cut, 1-1/2 overall length. Series 3670.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishWXL

Coolant throughNo

Corner radius0.0100

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleMedium

Length of cut in1/2

Length typeRegular

Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in1/8

Mill diameter tolerance0.0000 to -0.0008 in

Number of flutes4

Overall length in1-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter in1/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
