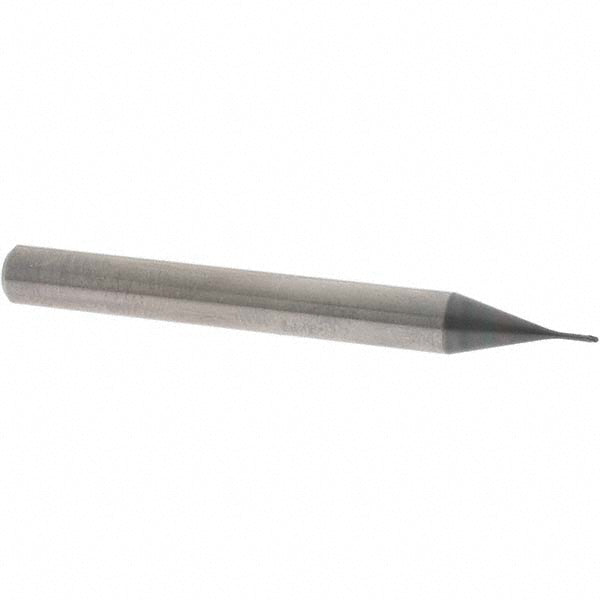

1/32in" 2-Flute Solid Carbide Ball End Mill, WXL - OSG 36900311

OSG

1/32in" 2-Flute Solid Carbide Ball End Mill, WXL - OSG 36900311

MFR# 36900311Series 3690

$90.45List $113.99 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/32in
Flutes2
MaterialSolid Carbide
CoatingWXL

Description

The OSG 36900311 is a 1/32in 2-flute Solid Carbide (Ultra Fine Micrograin) ball end mill with a WXL finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 1/32in length of cut, 2-1/2in overall length. Series 3690.

Specifications

Additional informationExocarbWXL End Mills Are The New Industry Standard For Hard Milling. Everything About WXL Is Designed For Rigidity And Performance In Wide Variety Of Materials And A Wide Variety Of Milling Applications. Substrates, Geometry, And Proprietary WXL Coating A
ChipbreakerNo
Coating finishWXL
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in1/32in
Length typeExtended
Manufacturers catalog number36900311
Material gradeUltra Fine Micrograin
Material removal typeRoughing & Finishing
Mill diameter in1/32in
Neck diameter0.0290in
Neck length0.1250
Nose radius0.0157
Number of flutes2
Overall length in2-1/2in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Reach length in5/32
Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
Shank diameter in1/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
