OSG

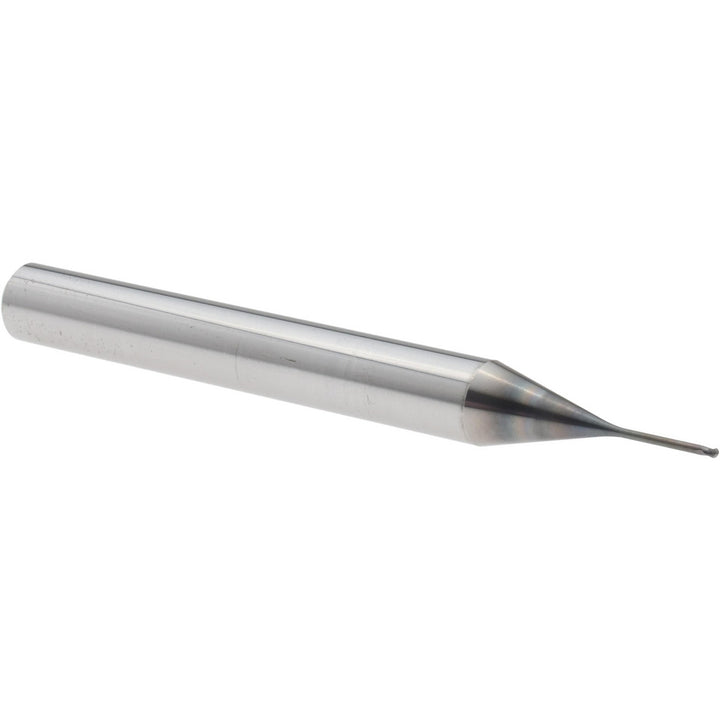

1/32" 2-Flute Solid Carbide Ball End Mill, WXL - OSG 36900411
MFR# 36900411Series 3690
$77.28List $99.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/32
Flutes2
MaterialSolid Carbide
CoatingWXL
Description
The OSG 36900411 is a 1/32 2-flute Solid Carbide (Ultra Fine Micrograin) ball end mill with a WXL finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 1/32 length of cut, 2-1/2 overall length. Series 3690.
Specifications
Additional informationExocarbWXL End Mills Are the New Industry Standard for Hard Milling. Everything About WXL Is Designed for Rigidity & Performance in Wide Variety of Materials & a Wide Variety of Milling Applications. Substrates, Geometry, & Proprietary WXL Coating Are All
ChipbreakerNo
Coating finishWXL
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length of cut in1/32
Length typeExtended
Manufacturers catalog number36900411
Material gradeUltra Fine Micrograin
Material removal typeRoughing & Finishing
Mill diameter in1/32
Neck diameter0.0290
Neck length in9/32
Nose radius0.0157
Number of flutes2
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Reach length in5/16
Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
