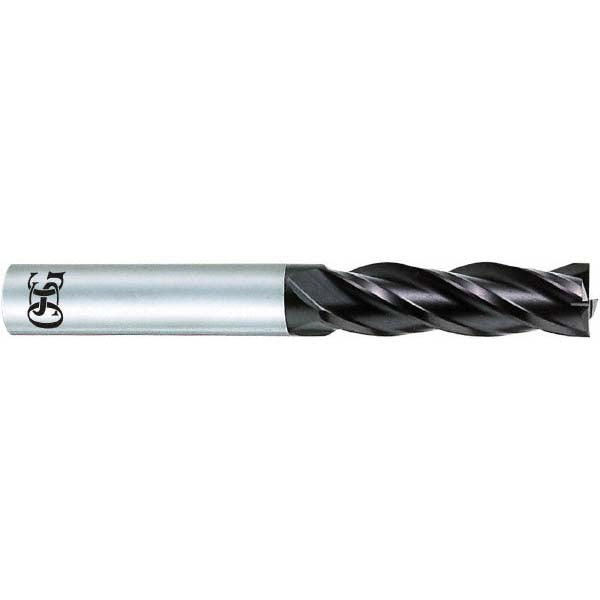

0.3543" 4-Flute Solid Carbide Square End Mill, WXL - OSG 37420012

OSG

0.3543" 4-Flute Solid Carbide Square End Mill, WXL - OSG 37420012

MFR# 37420012

$184.77List $236.97 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingWXL

Description

The OSG 37420012 is a 0.3543 4-flute Solid Carbide (Micrograin) square end mill with a WXL finish for longer tool life. 1.1024 length of cut.

Specifications

CentercuttingYes
Coating finishWXL
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix angle30
Length of cut1.1024
Length of cut range1.0000 - 1.2500
Material gradeMicrograin
Mill diameter0.3543
Number of flutes4
Overall length (mm)80
Shank diameter0.3937
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

OSG0.3543" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG HP441-3543 $71.17 Titan USA0.3543" 4-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC11971 $53.82 OSG0.3543" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 404-354311 $43.47 SGS0.3543" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 48534 $49.58
