9/64" 2-Flute Solid Carbide Square End Mill - OSG 402-1406

OSG

9/64" 2-Flute Solid Carbide Square End Mill - OSG 402-1406

MFR# 402-1406Series 402

$18.25List $23.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/64
Flutes2
MaterialSolid Carbide

Description

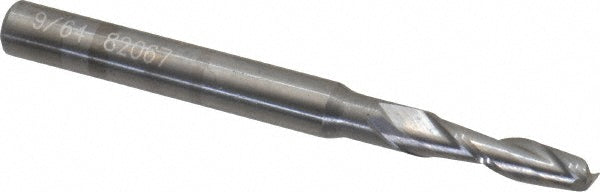

The OSG 402-1406 is a 9/64 2-flute Solid Carbide (Micrograin) square end mill. 1/2 length of cut, 2 overall length. Series 402.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length typeRegular
Material gradeMicrograin
Mill diameter in9/64
Number of flutes2
Overall length in2
Shank diameter in3/16
Variable helixNo
Variable indexNo
