OSG

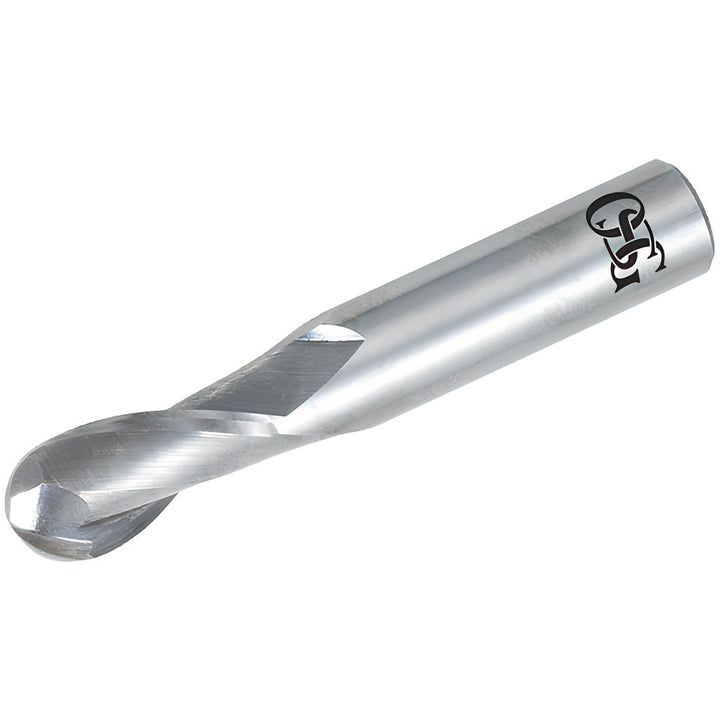

15/64in" 2-Flute Solid Carbide Ball End Mill - OSG 402-2344-BN
MFR# 402-2344-BNSeries 402BN
$26.17List $33.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter15/64in
Flutes2
MaterialSolid Carbide
Description
The OSG 402-2344-BN is a 15/64in 2-flute Solid Carbide (Micrograin) ball end mill. 3/4in length of cut, 2-1/2in overall length. Series 402BN.
Specifications
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in3/4in
Length typeStandard
Manufacturers catalog number402-2344-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in15/64in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.1172
Number of flutes2
Overall length in2-1/2in
Reach length0.7500
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in1/4in
Shank diameter tolerance+0.0000/-0.0005 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
