15/64" 2-Flute Solid Carbide Square End Mill, TiAlN - OSG 402-234411

OSG

15/64" 2-Flute Solid Carbide Square End Mill, TiAlN - OSG 402-234411

MFR# 402-234411Series 402

$32.44List $41.61 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter15/64
Flutes2
MaterialSolid Carbide
CoatingTiAlN

Description

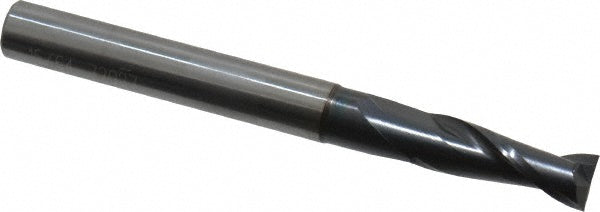

The OSG 402-234411 is a 15/64 2-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 2-1/2 overall length. Series 402.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length typeRegular
Material gradeMicrograin
Mill diameter in15/64
Number of flutes2
Overall length in2-1/2
Shank diameter in1/4
Variable helixNo
Variable indexNo
