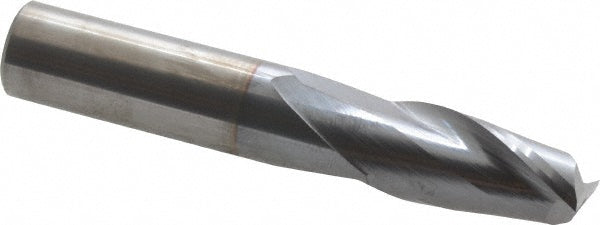

1/2" 2-Flute Solid Carbide Square End Mill, TiCN - OSG 402-500008

OSG

1/2" 2-Flute Solid Carbide Square End Mill, TiCN - OSG 402-500008

MFR# 402-500008Series 402

$66.49List $85.28 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide
CoatingTiCN

Description

The OSG 402-500008 is a 1/2 2-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 3 overall length. Series 402.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Material gradeMicrograin
Mill diameter in1/2
Number of flutes2
Overall length in3
Shank diameter in1/2
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
