5/32" 3-Flute Solid Carbide Square End Mill - OSG 403-1562

OSG

5/32" 3-Flute Solid Carbide Square End Mill - OSG 403-1562

MFR# 403-1562Series 403

$16.96List $21.76 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes3
MaterialSolid Carbide

Description

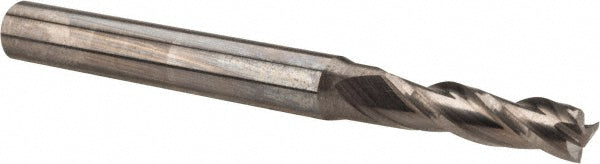

The OSG 403-1562 is a 5/32 3-flute Solid Carbide (Micrograin) square end mill. 9/16 length of cut, 2 overall length. Series 403.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in9/16
Length of cut range0.5000 - 0.6000
Length typeRegular
Material gradeMicrograin
Mill diameter in5/32
Number of flutes3
Overall length in2
Shank diameter in3/16
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
