OSG

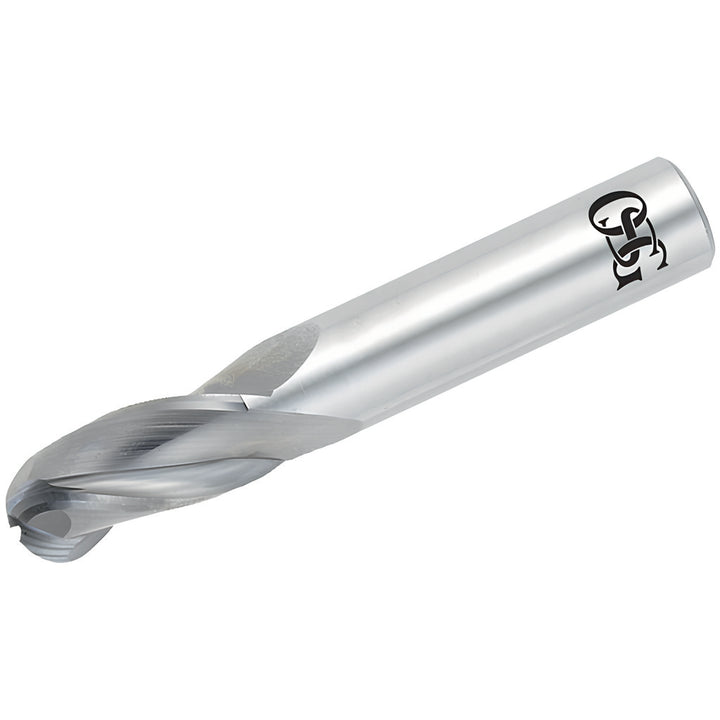

9/32in" 3-Flute Solid Carbide Ball End Mill - OSG 403-2812-BN
MFR# 403-2812-BNSeries 403BN
$27.91List $35.17
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter9/32in
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 403-2812-BN is a 9/32in 3-flute Solid Carbide (Micrograin) ball end mill. 3/4in length of cut, 2-1/2in overall length. Series 403BN.
Specifications
Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in3/4in
Length typeStandard
Manufacturers catalog number403-2812-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in9/32in
Mill diameter tolerance+0.0020/-0.0020 in
Neck length0.0000
Nose radius0.1407
Number of flutes3
Overall length in2-1/2in
Reach length0.7500
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in5/16in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
