OSG

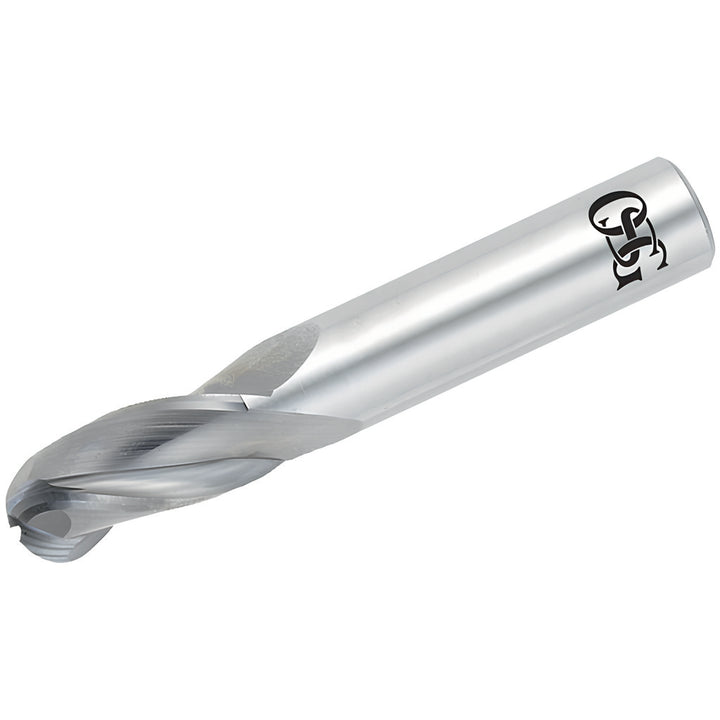

7/16in" 3-Flute Solid Carbide Ball End Mill - OSG 403-4375-BN
MFR# 403-4375-BNSeries 403BN
$49.36List $63.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter7/16in
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 403-4375-BN is a 7/16in 3-flute Solid Carbide (Micrograin) ball end mill. 1in length of cut, 2-3/4in overall length. Series 403BN.
Specifications
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in1in
Length typeStandard
Manufacturers catalog number403-4375-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in7/16in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.2188
Number of flutes3
Overall length in2-3/4in
Reach length1.0000
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in7/16in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
