OSG

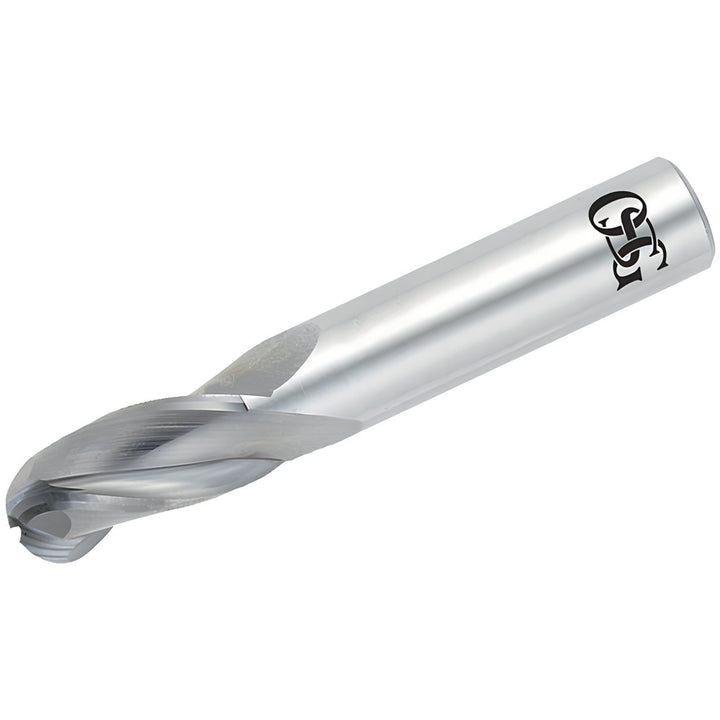

5/8in" 3-Flute Solid Carbide Ball End Mill - OSG 403-6250-BN
MFR# 403-6250-BNSeries 403BN
$103.93List $130.97
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8in
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 403-6250-BN is a 5/8in 3-flute Solid Carbide (Micrograin) ball end mill. 1-1/4in length of cut, 3-1/2in overall length. Series 403BN.
Specifications
Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in1-1/4in
Length typeStandard
Manufacturers catalog number403-6250-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in5/8in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.3125
Number of flutes3
Overall length in3-1/2in
Reach length1.2500
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in5/8in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
