OSG

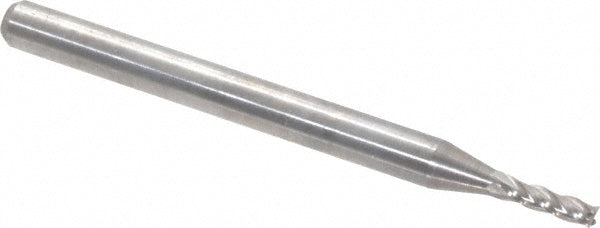

0.0591" 4-Flute Solid Carbide Square End Mill - OSG 404-0591
MFR# 404-0591Series 404
$11.79List $15.11
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
Description
The OSG 404-0591 is a 0.0591 4-flute Solid Carbide (Micrograin) square end mill. 0.1969 length of cut. Series 404.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.1969
Length of cut range0.1000 - 0.2000
Length typeRegular
Material gradeMicrograin
Mill diameter0.0591
Number of flutes4
Overall length (mm)39.00
Shank diameter (mm)3.00
Variable helixNo
Variable indexNo
