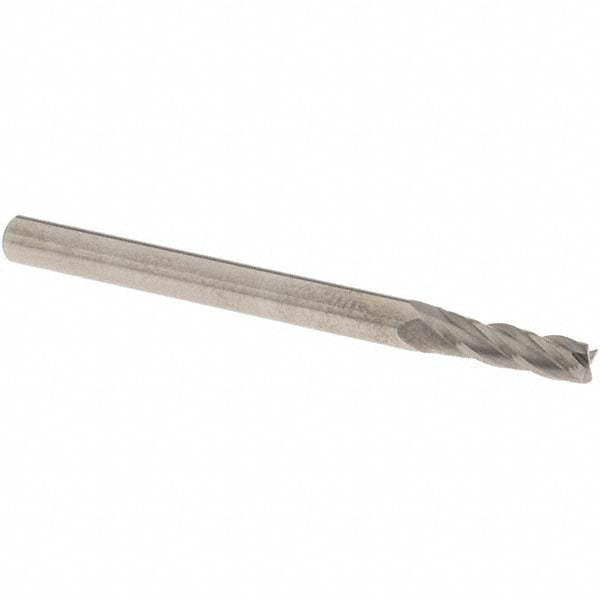

0.1378" 4-Flute Solid Carbide Square End Mill - OSG 404-1378
MFR# 404-1378Series 404
$16.24List $20.82
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
Description
The OSG 404-1378 is a 0.1378 4-flute Solid Carbide (Micrograin) square end mill. 0.4724 length of cut. Series 404.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.4724
Length of cut range0.3000 - 0.5000
Length typeRegular
Material gradeMicrograin
Mill diameter0.1378
Number of flutes4
Overall length (mm)51.00
Shank diameter (mm)4.00
Variable helixNo
Variable indexNo
