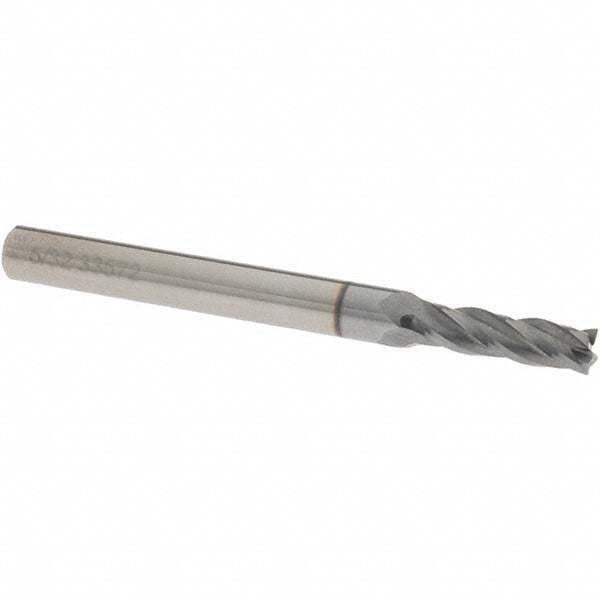

5/32" 4-Flute Solid Carbide Square End Mill, TiCN - OSG 404-156208

OSG

5/32" 4-Flute Solid Carbide Square End Mill, TiCN - OSG 404-156208

MFR# 404-156208Series 404

$18.71List $24.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The OSG 404-156208 is a 5/32 4-flute Solid Carbide (Micrograin) square end mill. 9/16 length of cut, 2 overall length. Series 404.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in9/16
Length of cut range0.5000 - 0.6000
Length typeRegular
Material gradeMicrograin
Mill diameter in5/32
Mill diameter tolerance+0.000/-0.001 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank diameter tolerance+0.00000/-0.0005 in
Variable helixNo
Variable indexNo
