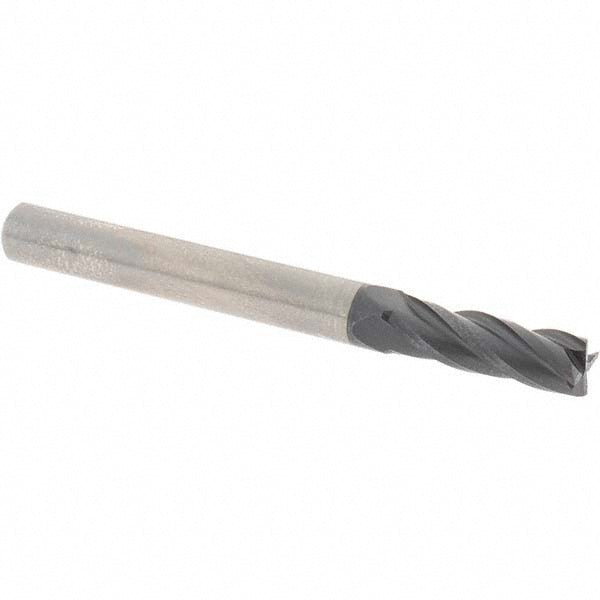

15/64" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 404-234411

OSG

15/64" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 404-234411

MFR# 404-234411Series 404

$32.44List $41.61 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter15/64
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The OSG 404-234411 is a 15/64 4-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 2-1/2 overall length. Series 404.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length typeRegular
Material gradeMicrograin
Mill diameter in15/64
Mill diameter tolerance+0.000/-0.001 in
Number of flutes4
Overall length in2-1/2
Shank diameter in1/4
Shank diameter tolerance+0.00000/-0.0005 in
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Harvey Tool15/64" 4-Flute Solid Carbide Square End Mill - Harvey Tool 73195 $18.75 OSG15/64" 4-Flute Solid Carbide Square End Mill - OSG 404-2344 $24.42 SGS15/64" 4-Flute Solid Carbide Square End Mill - SGS 30129 $26.59 Kennametal15/64" 4-Flute Solid Carbide Square End Mill, TiAlN - Kennametal 6086575 $35.23
