17/64" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 404-265611

OSG

17/64" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 404-265611

MFR# 404-265611Series 404

$37.55List $48.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter17/64
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

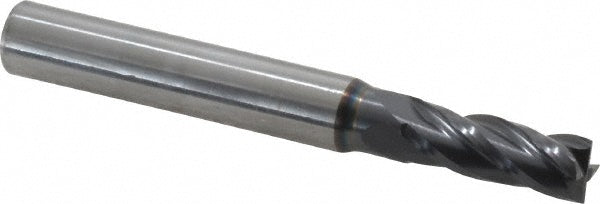

The OSG 404-265611 is a 17/64 4-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 2-1/2 overall length. Series 404.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length typeRegular
Material gradeMicrograin
Mill diameter in17/64
Mill diameter tolerance+0.000/-0.001 in
Number of flutes4
Overall length in2-1/2
Shank diameter in5/16
Shank diameter tolerance+0.00000/-0.0005 in
Variable helixNo
Variable indexNo
