OSG

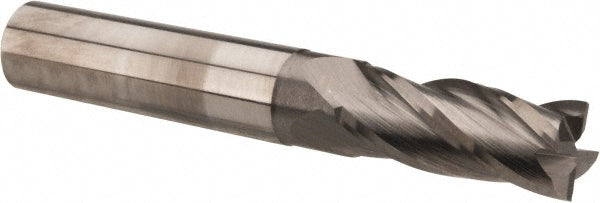

23/64" 4-Flute Solid Carbide Square End Mill - OSG 404-3594
MFR# 404-3594Series 404
$37.29List $47.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter23/64
Flutes4
MaterialSolid Carbide
Description
The OSG 404-3594 is a 23/64 4-flute Solid Carbide (Micrograin) square end mill. 7/8 length of cut, 2-1/2 overall length. Series 404.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in7/8
Length typeRegular
Material gradeMicrograin
Mill diameter in23/64
Number of flutes4
Overall length in2-1/2
Shank diameter in3/8
Variable helixNo
Variable indexNo
