OSG

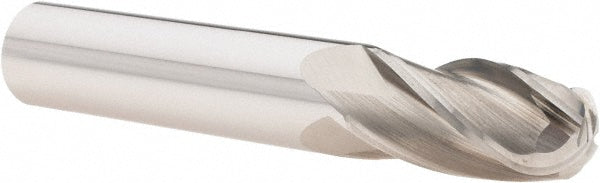

1/2in" 4-Flute Solid Carbide Ball End Mill - OSG 404-5000-BN
MFR# 404-5000-BNSeries 404BN
$61.04List $78.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2in
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 404-5000-BN is a 1/2in 4-flute Solid Carbide (Micrograin) ball end mill. 1in length of cut, 3in overall length. Series 404BN.
Specifications
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in1in
Length typeStandard
Manufacturers catalog number404-5000-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/2in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.2500
Number of flutes4
Overall length in3in
Reach length1.0000
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in1/2in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
