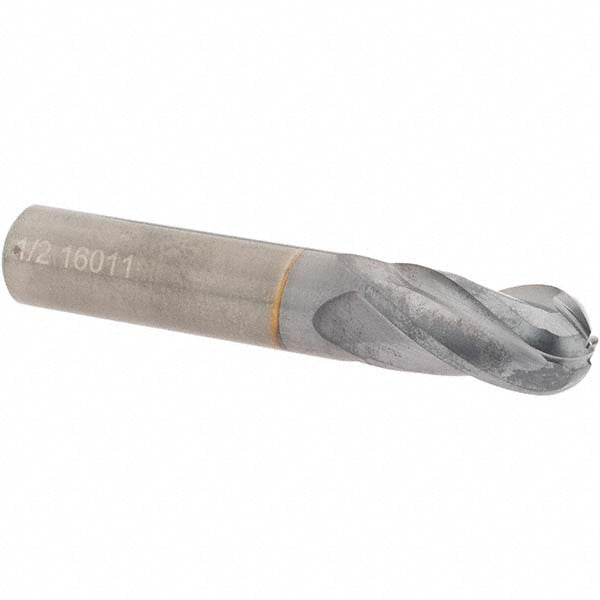

1/2" 4-Flute Solid Carbide Ball End Mill, TiCN - OSG 404-5000-BN08

OSG

1/2" 4-Flute Solid Carbide Ball End Mill, TiCN - OSG 404-5000-BN08

MFR# 404-5000-BN08Series 404BN

$69.69List $89.38 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The OSG 404-5000-BN08 is a 1/2 4-flute Solid Carbide (Micrograin) ball end mill with a TiCN finish for longer tool life. 1 length of cut, 3 overall length. Series 404BN.

Specifications

Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length typeRegular
Material gradeMicrograin
Mill diameter in1/2
Number of flutes4
Overall length in3
Shank diameter in1/2
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
