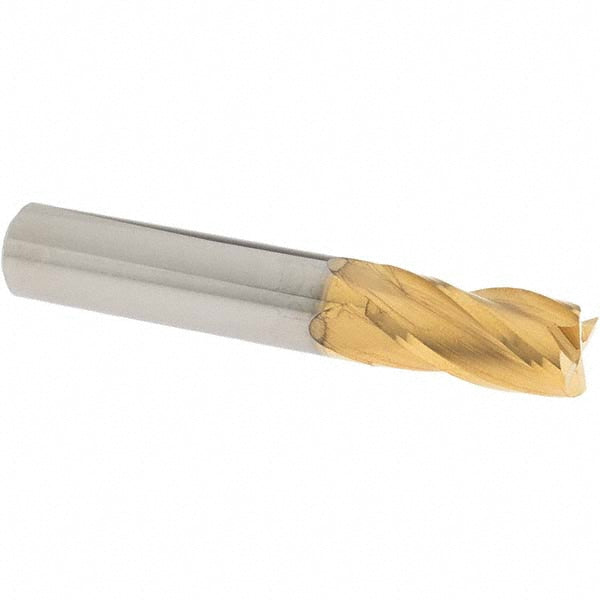

1/2" 4-Flute Solid Carbide Square End Mill, TiN - OSG 404-500005

OSG

1/2" 4-Flute Solid Carbide Square End Mill, TiN - OSG 404-500005

MFR# 404-500005Series 404

$61.68List $79.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingTiN

Description

The OSG 404-500005 is a 1/2 4-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 3 overall length. Series 404.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Material gradeMicrograin
Mill diameter in1/2
Number of flutes4
Overall length in3
Shank diameter in1/2
Variable helixNo
Variable indexNo
