OSG

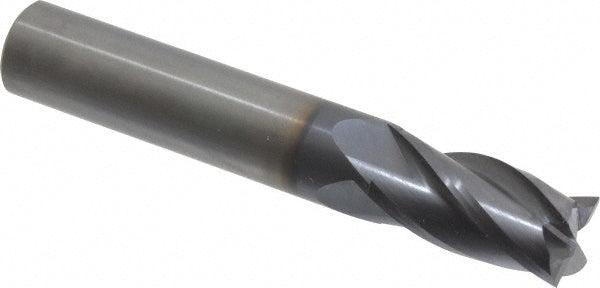

9/16" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 404-562511
MFR# 404-562511Series 404
$99.79List $127.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter9/16
Flutes4
MaterialSolid Carbide
CoatingTiAlN
Description
The OSG 404-562511 is a 9/16 4-flute Solid Carbide (Micrograin) square end mill. 1-1/8 length of cut, 3-1/2 overall length. Series 404.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/8
Length typeRegular
Material gradeMicrograin
Mill diameter in9/16
Mill diameter tolerance+0.000/-0.001 in
Number of flutes4
Overall length in3-1/2
Shank diameter in9/16
Shank diameter tolerance+0.00000/-0.0005 in
Variable helixNo
Variable indexNo
