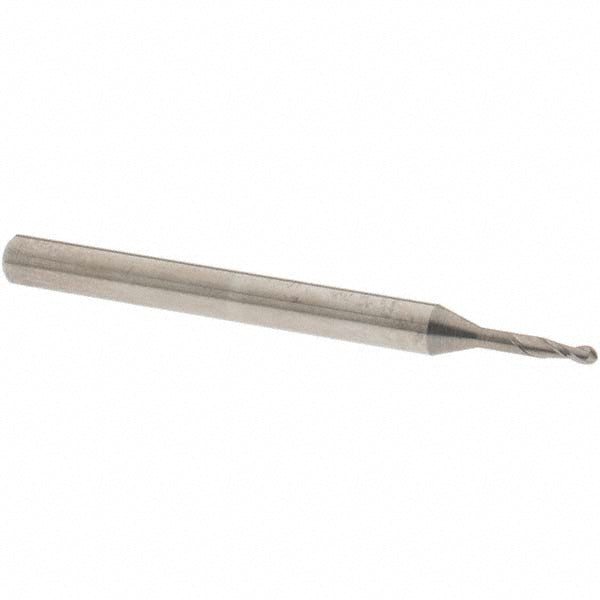

3/64in" 2-Flute Solid Carbide Ball End Mill - OSG 412-0469-BN

OSG

3/64in" 2-Flute Solid Carbide Ball End Mill - OSG 412-0469-BN

MFR# 412-0469-BNSeries 412BN

$13.56List $17.39 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/64in
Flutes2
MaterialSolid Carbide

Description

The OSG 412-0469-BN is a 3/64in 2-flute Solid Carbide (Micrograin) ball end mill. 3/32in length of cut, 1-1/2in overall length. Series 412BN.

Specifications

Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in3/32in
Length typeStandard
Manufacturers catalog number412-0469-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in3/64in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.0235
Number of flutes2
Overall length in1-1/2in
Reach length0.0938
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in1/8in
Shank diameter tolerance+0.0000/-0.0005 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
