OSG

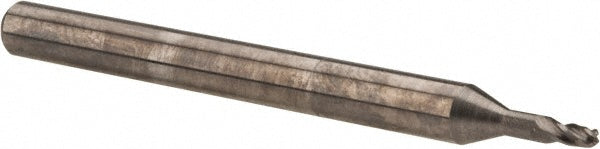

3/64in" 4-Flute Solid Carbide Ball End Mill - OSG 414-0469-BN
MFR# 414-0469-BNSeries 414BN
$13.56List $17.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/64in
Flutes4
MaterialSolid Carbide
Description
The OSG 414-0469-BN is a 3/64in 4-flute Solid Carbide (Micrograin) ball end mill. 3/32in length of cut, 1-1/2in overall length. Series 414BN.
Specifications
Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in3/32in
Length typeStandard
Manufacturers catalog number414-0469-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in3/64in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.0235
Number of flutes4
Overall length in1-1/2in
Reach length0.0938
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in1/8in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
