OSG

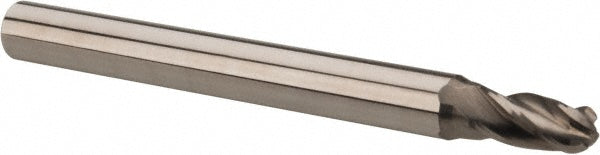

5/32in" 4-Flute Solid Carbide Ball End Mill - OSG 414-1562-BN
MFR# 414-1562-BNSeries 414BN
$17.11List $21.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/32in
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 414-1562-BN is a 5/32in 4-flute Solid Carbide (Micrograin) ball end mill. 5/16in length of cut, 2in overall length. Series 414BN.
Specifications
Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in5/16in
Length typeStandard
Manufacturers catalog number414-1562-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in5/32in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.0782
Number of flutes4
Overall length in2in
Reach length0.3125
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in3/16in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
