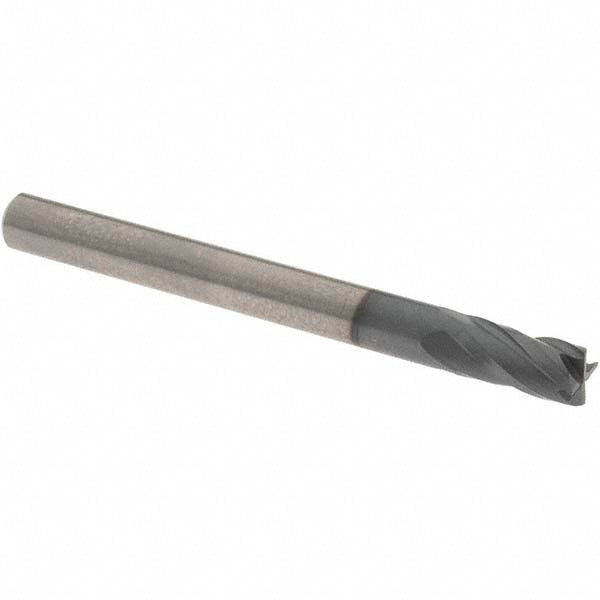

3/16" 4-Flute Solid Carbide Square End Mill, TiCN - OSG 414-187508

OSG

3/16" 4-Flute Solid Carbide Square End Mill, TiCN - OSG 414-187508

MFR# 414-187508Series 414

$16.57List $21.24 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The OSG 414-187508 is a 3/16 4-flute Solid Carbide (Micrograin) square end mill. 5/16 length of cut, 2 overall length. Series 414.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/16
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeMicrograin
Mill diameter in3/16
Mill diameter tolerance+0.000/-0.001 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank diameter tolerance+0.00000/-0.0005 in
Variable helixNo
Variable indexNo
