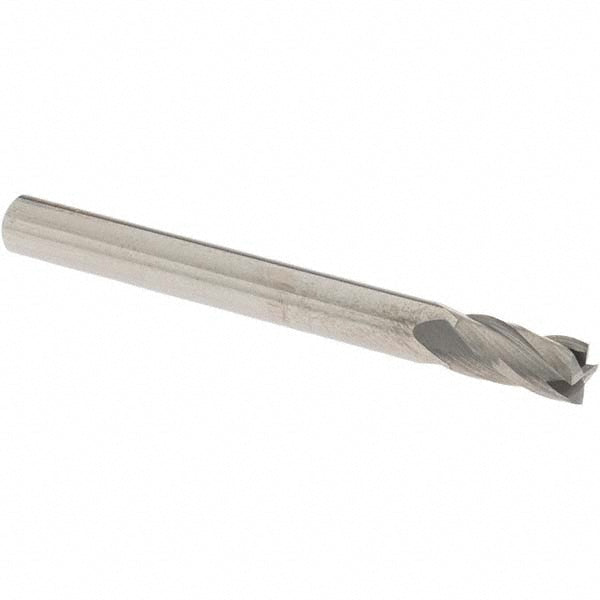

0.1969" 4-Flute Solid Carbide Square End Mill - OSG 414-1968

OSG

0.1969" 4-Flute Solid Carbide Square End Mill - OSG 414-1968

MFR# 414-1968Series 414

$16.27List $20.87 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide

Description

The OSG 414-1968 is a 0.1969 4-flute Solid Carbide (Micrograin) square end mill. 0.3937 length of cut. Series 414.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.3937
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeMicrograin
Mill diameter0.1969
Number of flutes4
Overall length (mm)51.00
Shank diameter (mm)5.00
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

SGS0.1969" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 49186 $22.03 Seco0.1969" 4-Flute Solid Carbide Square End Mill, AlTiN - Seco 03083900 $40.25 SGS0.1969" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 48913 $40.89 Seco0.1969" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 03083921 $32.01
