0.2362" 4-Flute Solid Carbide Square End Mill - OSG 414-2362

OSG

0.2362" 4-Flute Solid Carbide Square End Mill - OSG 414-2362

MFR# 414-2362Series 414

$16.61List $21.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide

Description

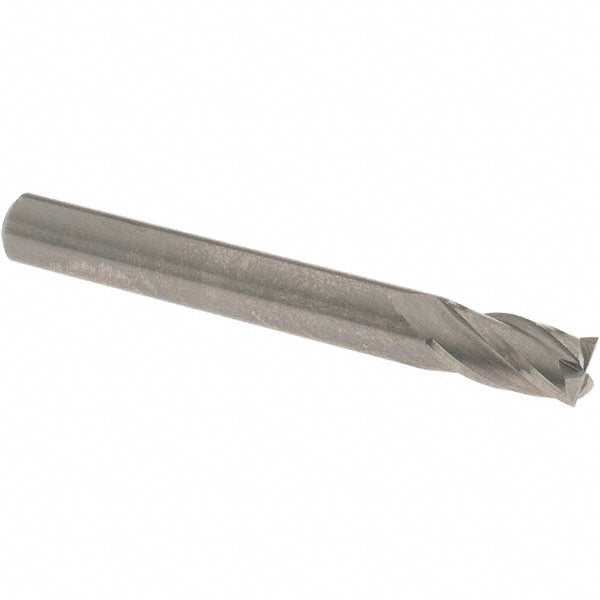

The OSG 414-2362 is a 0.2362 4-flute Solid Carbide (Micrograin) square end mill. 0.4724 length of cut. Series 414.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.4724
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeMicrograin
Mill diameter0.2362
Number of flutes4
Overall length (mm)51.00
Shank diameter (mm)6.00
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Seco0.2362" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Seco 03083963 $39.74 SGS0.2362" 4-Flute Solid Carbide Square End Mill, TiN - SGS 48893 $39.41 SGS0.2362" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 49166 $22.24 Kennametal0.2362" 4-Flute Solid Carbide Corner Chamfer End Mill, AlTiN - Kennametal 4046264 $58.67
