OSG

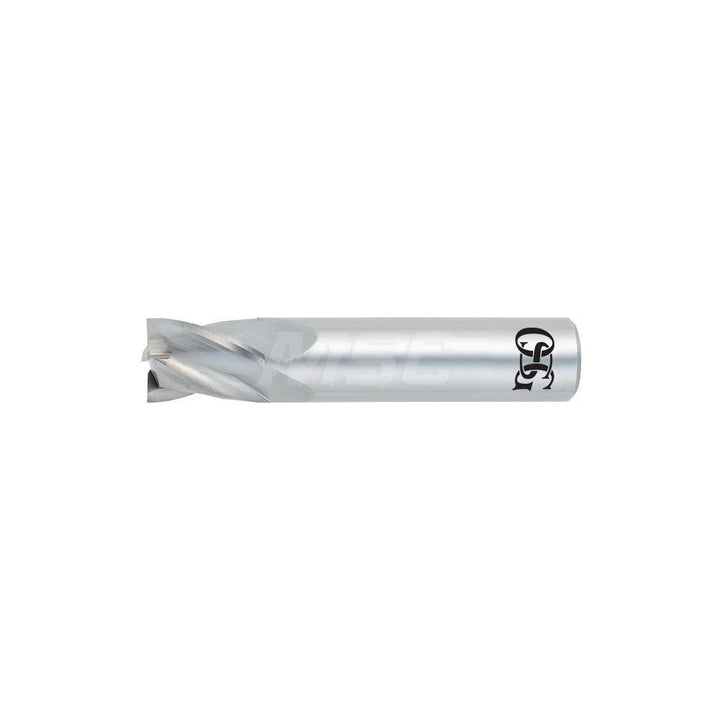

1/4" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 414-250011
MFR# 414-250011Series 414
$48.98List $61.73
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingTiAlN
Description
The OSG 414-250011 is a 1/4 4-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, hardened materials. 1/2 length of cut, 2 overall length. Series 414.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Coating finish familyTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length typeStub
Material gradeMicrograin
Mill diameter in1/4
Neck diameter0.2500
Number of flutes4
Overall length in2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; Hardened Materials
Shank diameter in1/4
Shank diameter tolerance+0.0000 - -0.0020 in
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
