0.3937" 4-Flute Solid Carbide Square End Mill - OSG 414-3937

OSG

0.3937" 4-Flute Solid Carbide Square End Mill - OSG 414-3937

MFR# 414-3937Series 414

$33.83List $43.39 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide

Description

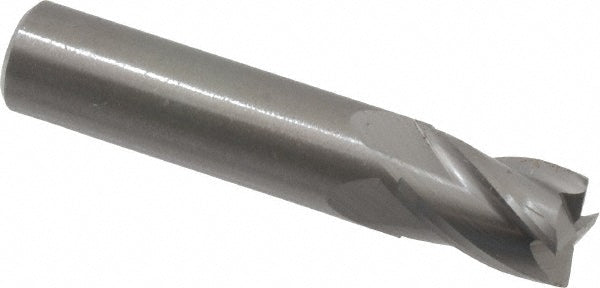

The OSG 414-3937 is a 0.3937 4-flute Solid Carbide (Micrograin) square end mill. 0.5512 length of cut. Series 414.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.5512
Length of cut range0.5000 - 0.6000
Length typeStub
Material gradeMicrograin
Mill diameter0.3937
Number of flutes4
Overall length (mm)51.00
Shank diameter (mm)10.00
Variable helixNo
Variable indexNo
