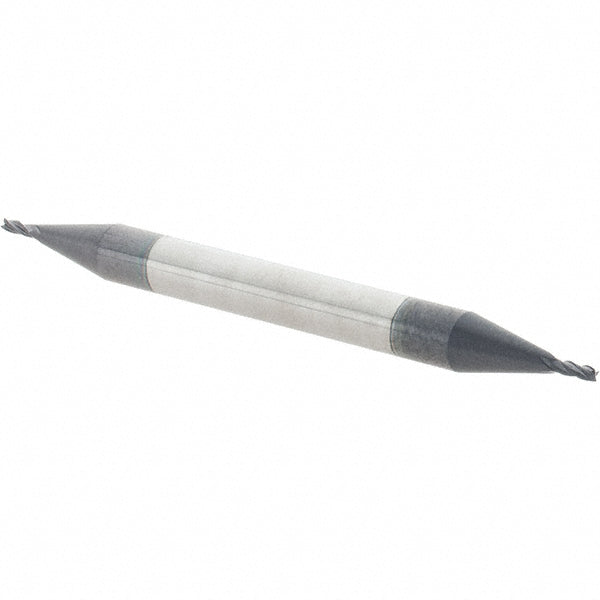

0.0313" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 424-031211

OSG

0.0313" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 424-031211

MFR# 424-031211Series 424

$49.54List $63.54 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The OSG 424-031211 is a 0.0313 4-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. 5/64in length of cut, 1-1/2in overall length. Series 424.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/64in
Length typeStub
Material gradeMicrograin
Mill diameter0.0313
Neck diameter0.0313in
Number of flutes4
Overall length in1-1/2in
Shank diameter in1/8in
Shank diameter tolerance+0.0000 to -0.0020 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
