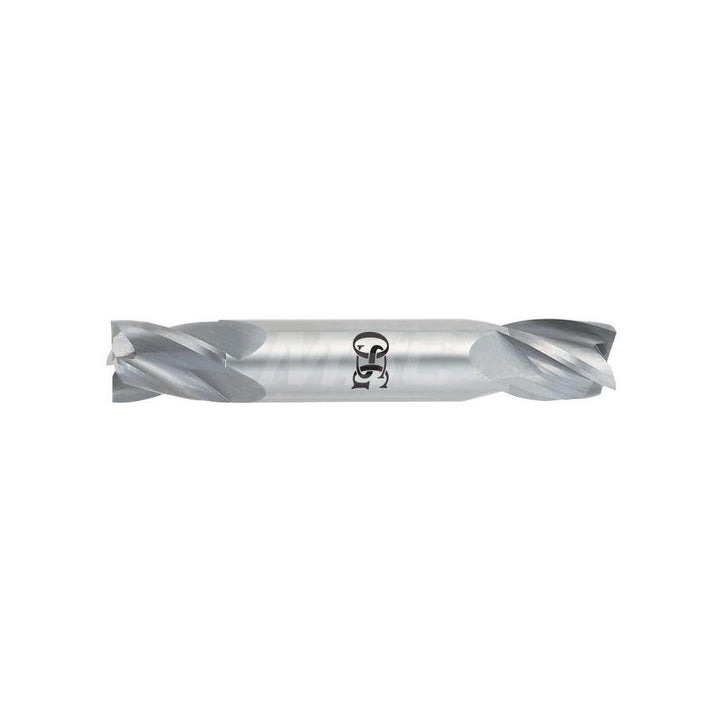

1/2in" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 424-500011
MFR# 424-500011Series 424
$183.90List $235.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2in
Flutes4
MaterialSolid Carbide
CoatingTiAlN
Description
The OSG 424-500011 is a 1/2in 4-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. 5/8in length of cut, 3in overall length. Series 424.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8in
Length typeStub
Material gradeMicrograin
Mill diameter in1/2in
Neck diameter0.5000in
Number of flutes4
Overall length in3in
Shank diameter in1/2in
Shank diameter tolerance+0.0000 to -0.0020 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
