OSG

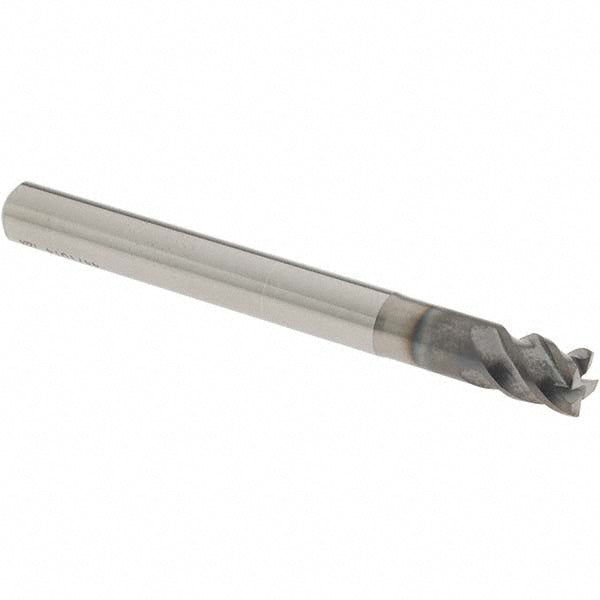

1/4" 4-Flute Solid Carbide Corner Radius End Mill, WXS - OSG 447101411
MFR# 447101411Series 4471
$110.73List $142.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingWXS
Description
The OSG 447101411 is a 1/4 4-flute Solid Carbide (Micrograin) corner radius end mill with a WXS finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1/4 length of cut, 2-1/2 overall length. Series 4471.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishWXS
Coolant throughNo
Corner radius0.0100
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleHigh
Length of cut in1/4
Length typeRegular
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/4
Mill diameter tolerance0.0000 to -0.0008 in
Neck diameter0.2420
Number of flutes4
Overall length in2-1/2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length in3/4
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
