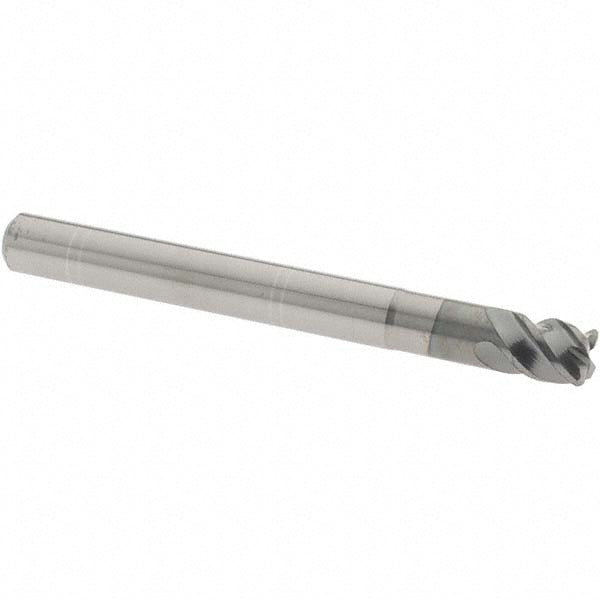

1/4in" 4-Flute Solid Carbide Corner Radius End Mill, WXS - OSG 447101611
MFR# 447101611Series 4471
$129.58List $163.31
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4in
Flutes4
MaterialSolid Carbide
CoatingWXS
Description
The OSG 447101611 is a 1/4in 4-flute Solid Carbide (Micrograin) corner radius end mill with a WXS finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1/4in length of cut, 2-1/2in overall length. Series 4471.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishWXS
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in1/4in
Length typeRegular
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/4in
Mill diameter tolerance0.0000/-0.0008 in
Neck diameter0.2420in
Number of flutes4
Overall length in2-1/2in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length in3/4
Shank diameter in1/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
