OSG

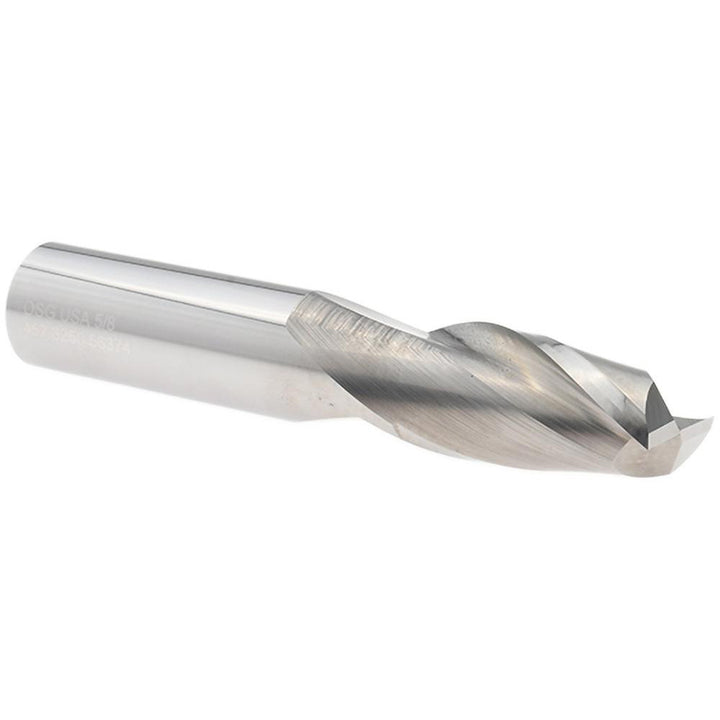

5/8" 2-Flute Solid Carbide Square End Mill - OSG 452-6250

MFR# 452-6250Series 452

$125.11List $160.46 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The OSG 452-6250 is a 5/8 2-flute Solid Carbide (Micrograin) square end mill. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, hardened materials. 1-1/4 length of cut, 3-1/2 overall length. Series 452.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/4

Length of cut range1.2500 - 1.5000

Length typeRegular

Material gradeMicrograin

Mill diameter in5/8

Number of flutes2

Overall length in3-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; Hardened Materials

Shank diameter in5/8

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
