OSG

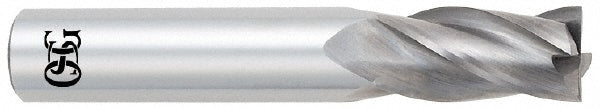

3/16" 4-Flute Solid Carbide Square End Mill - OSG 454-1875
MFR# 454-1875Series 454
$20.70List $26.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
Description
The OSG 454-1875 is a 3/16 4-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2 overall length. Series 454.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeRegular
Material gradeMicrograin
Mill diameter in3/16
Number of flutes4
Overall length in2
Shank diameter in3/16
Variable helixNo
Variable indexNo
