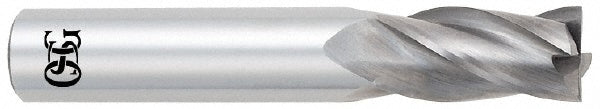

1/4" 4-Flute Solid Carbide Square End Mill - OSG 454-2500

OSG

1/4" 4-Flute Solid Carbide Square End Mill - OSG 454-2500

MFR# 454-2500Series 454

$27.31List $35.03 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The OSG 454-2500 is a 1/4 4-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 2-1/2 overall length. Series 454.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/4
Number of flutes4
Overall length in2-1/2
Shank diameter in1/4
Variable helixNo
Variable indexNo
