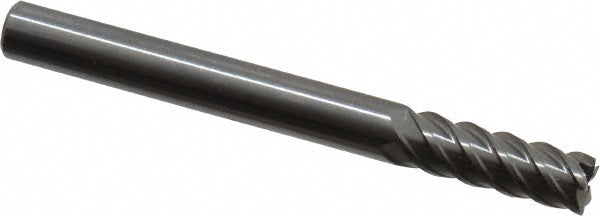

1/4" 5-Flute Solid Carbide Square End Mill - OSG 455-2500

OSG

1/4" 5-Flute Solid Carbide Square End Mill - OSG 455-2500

MFR# 455-2500Series 455C

$28.34List $36.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes5
MaterialSolid Carbide

Description

The OSG 455-2500 is a 1/4 5-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 2-1/2 overall length. Series 455C.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/4
Number of flutes5
Overall length in2-1/2
Shank diameter in1/4
Variable helixNo
Variable indexNo
