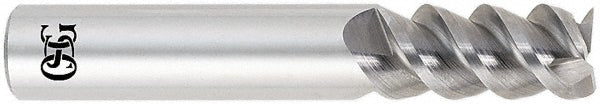

1/8" 3-Flute Solid Carbide Square End Mill - OSG 460-1250
MFR# 460-1250Series 460C
$14.55List $18.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 460-1250 is a 1/8 3-flute Solid Carbide (Micrograin) square end mill. 1/2 length of cut, 1-1/2 overall length. Series 460C.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle60
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/8
Number of flutes3
Overall length in1-1/2
Shank diameter in1/8
Variable helixNo
Variable indexNo
